Filtre/régulateur pneumatique
←
Back
Les filtres avec régulateur sont les plus répandu des composants
MX Filter regulator
25 µm with relieving semiautomatic-manual drain
0.5 ÷ 10 bar
with built-in pressure gauge 0-12
MX2 = G3/8 - G1/2 - G3/4
MX3 = G3/4 - G1

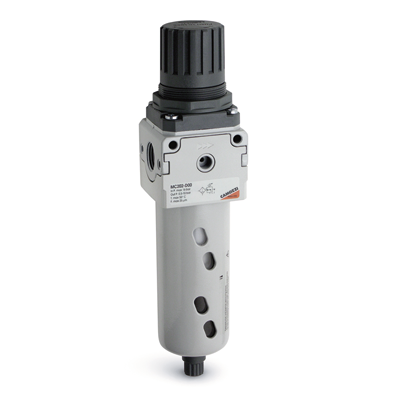

MC Filter regulator
5 - 25 µm with relieving semiautomatic-manual drain
0.5 ÷ 10 bar
MC1 = G1/4
MC2 = G3/8 - G1/2

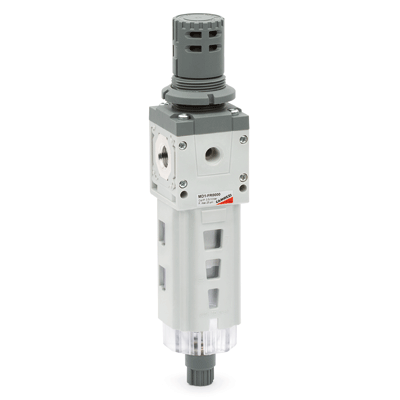

MD Filter regulator
5 - 25 µm with relieving
0.5 ÷ 10 bar
G1/8 - G1/4 - G3/8
Ø6 - Ø8 - Ø10

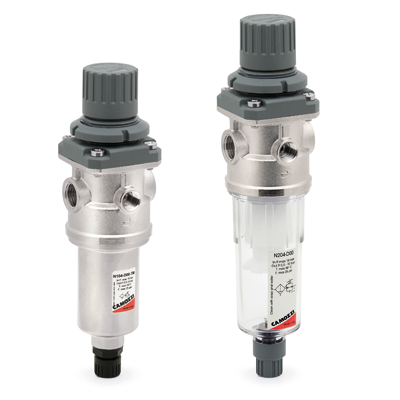

N Filter regulator
5 - 25 µm with relieving
0.5 ÷ 10 bar
G1/8 - G1/4
11 cm³ (bowl size = 1)
28 cm³ (bowl size = 2)

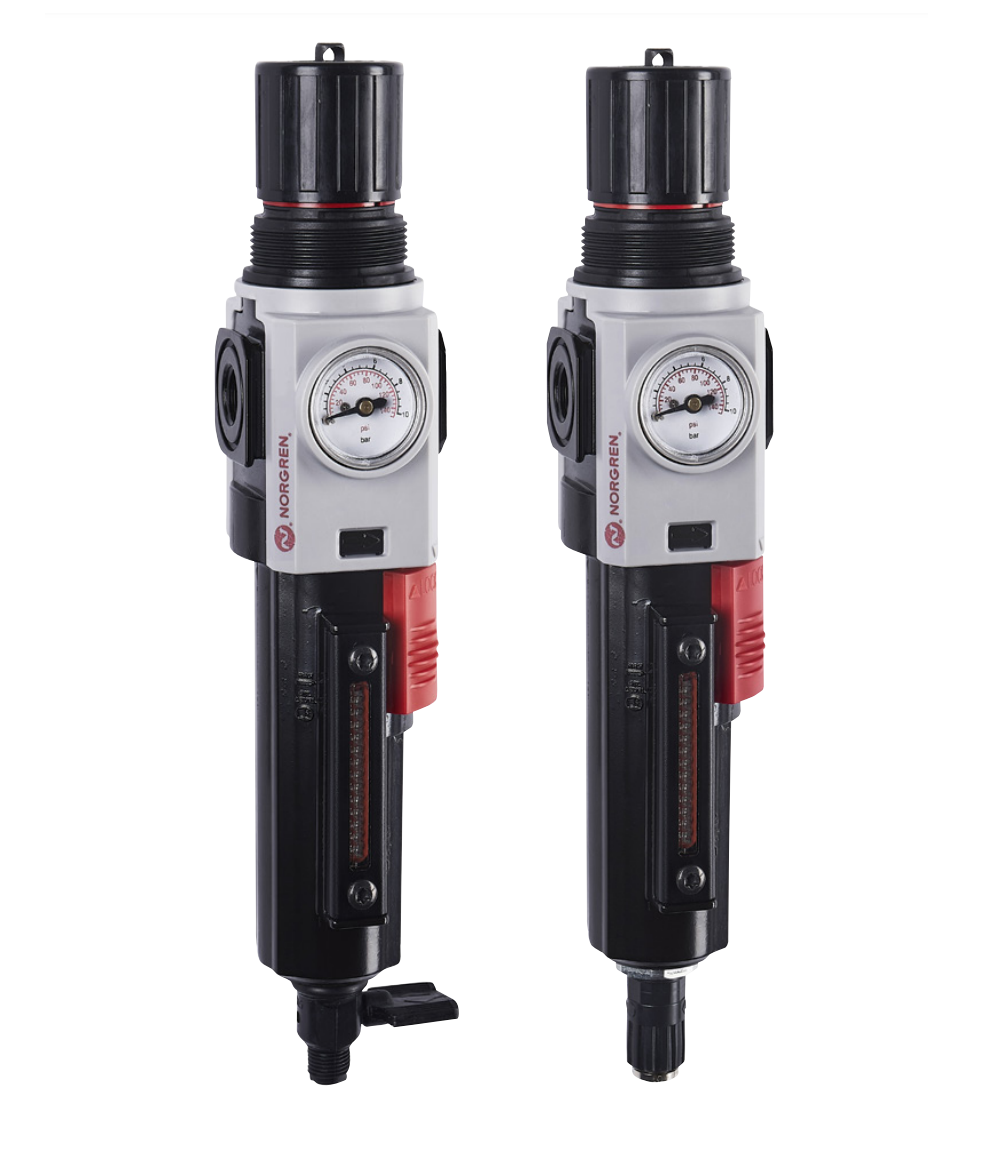

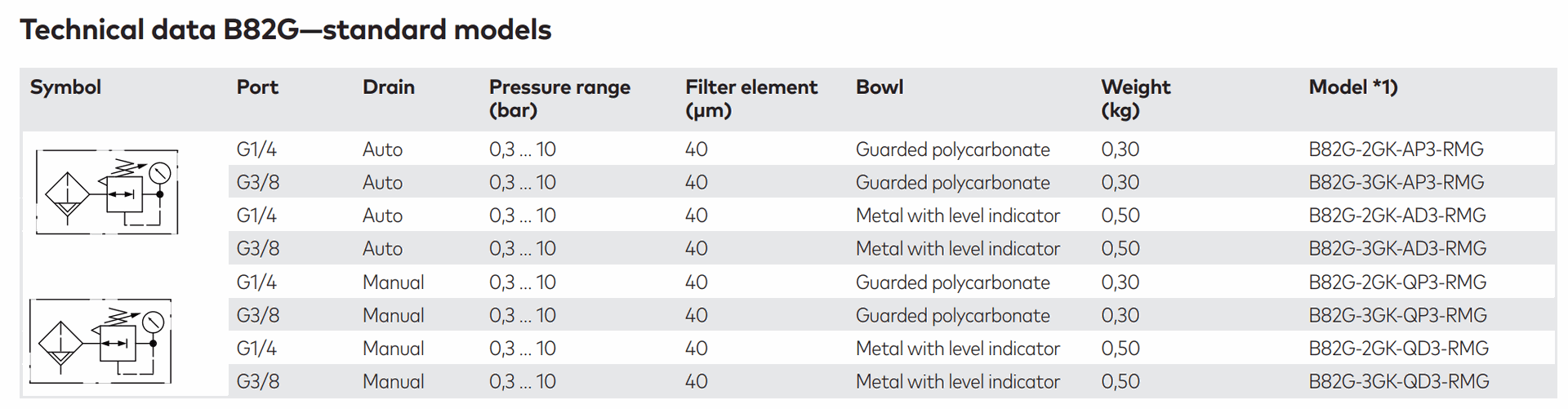

B82G Filter regulator
40 µm filtration
automatic-manual drain
0.3 ÷ 10 bar
with built-in pressure gauge 0-12
G1/4 & G3/8

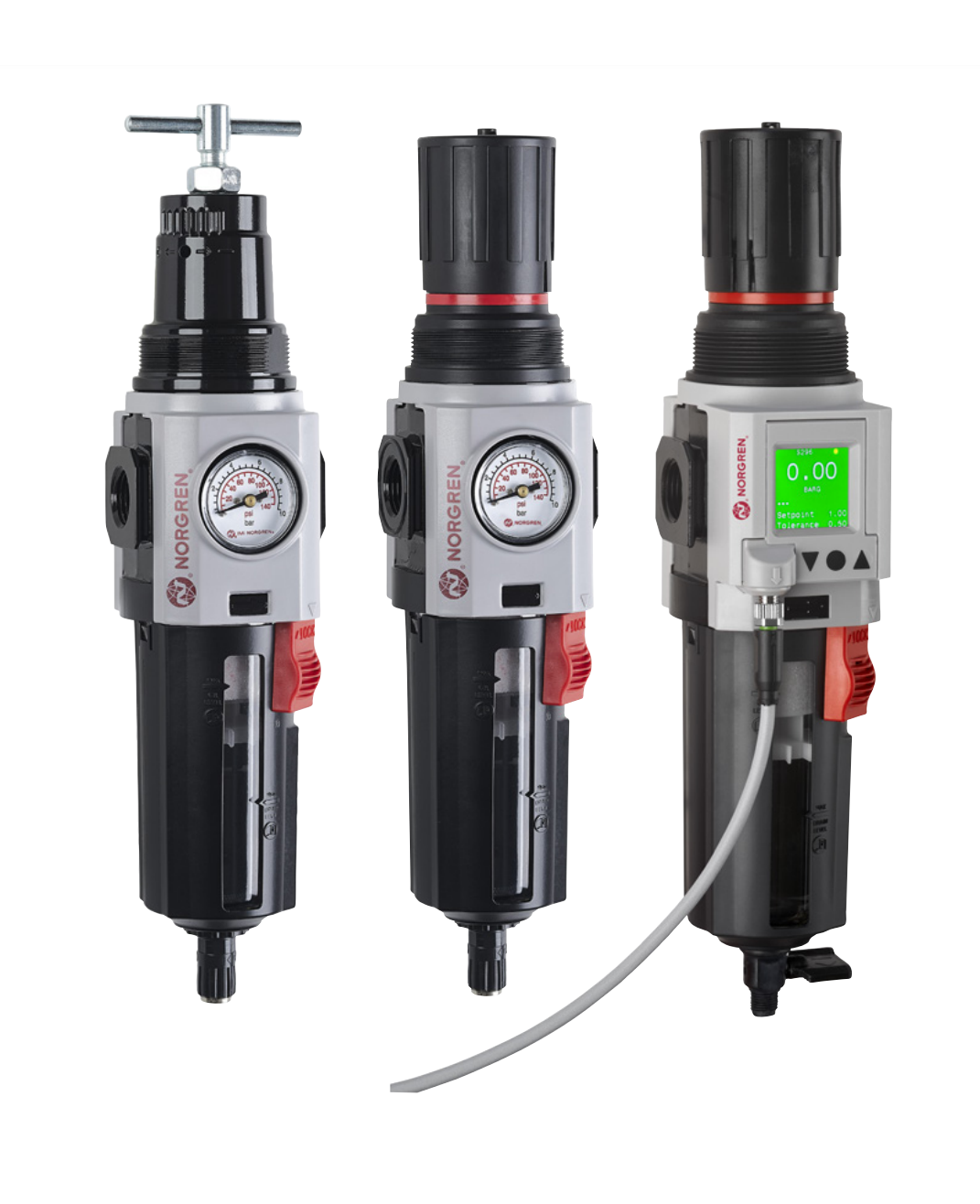

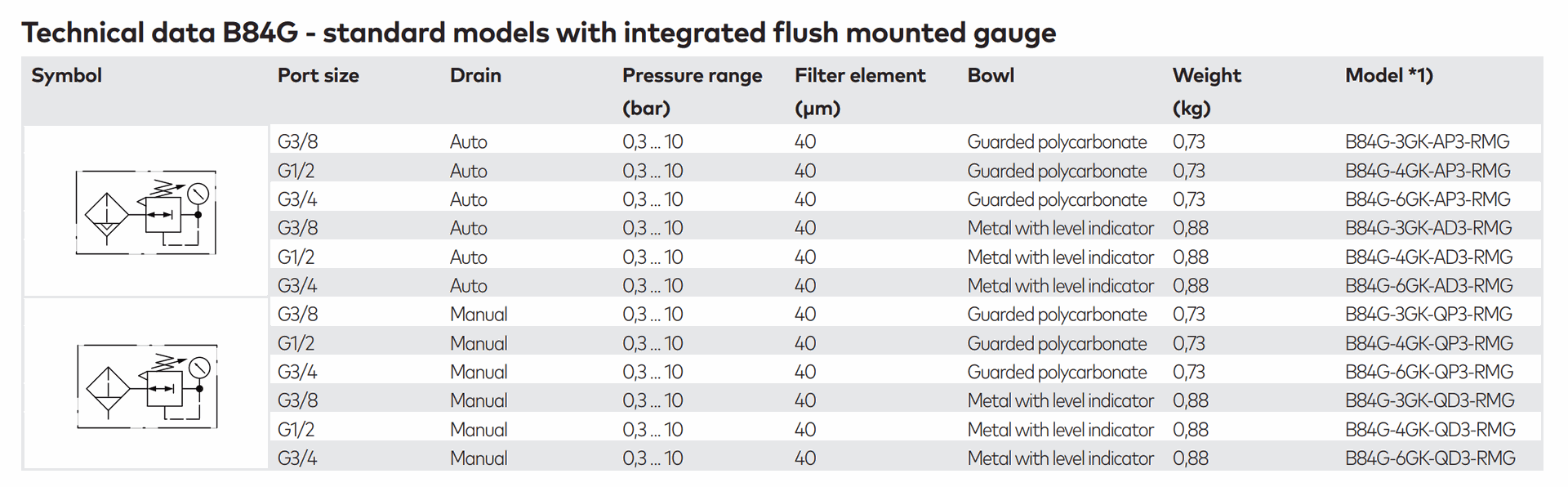

B84G Filter regulator
40 µm filtration
automatic-manual drain
0.3 ÷ 10 bar
with built-in pressure gauge 0-12
G3/8 - G 1/2 - G 3/4

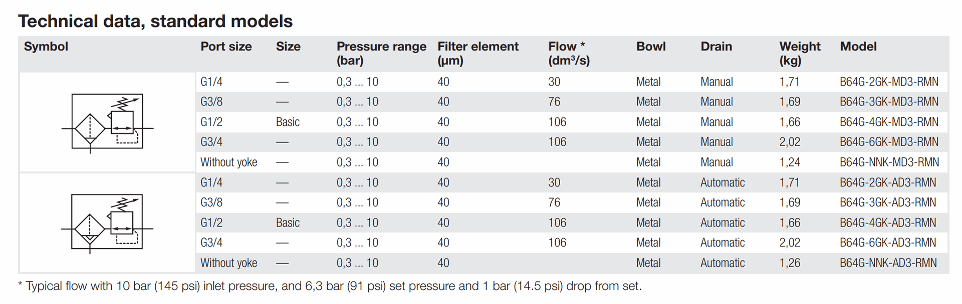

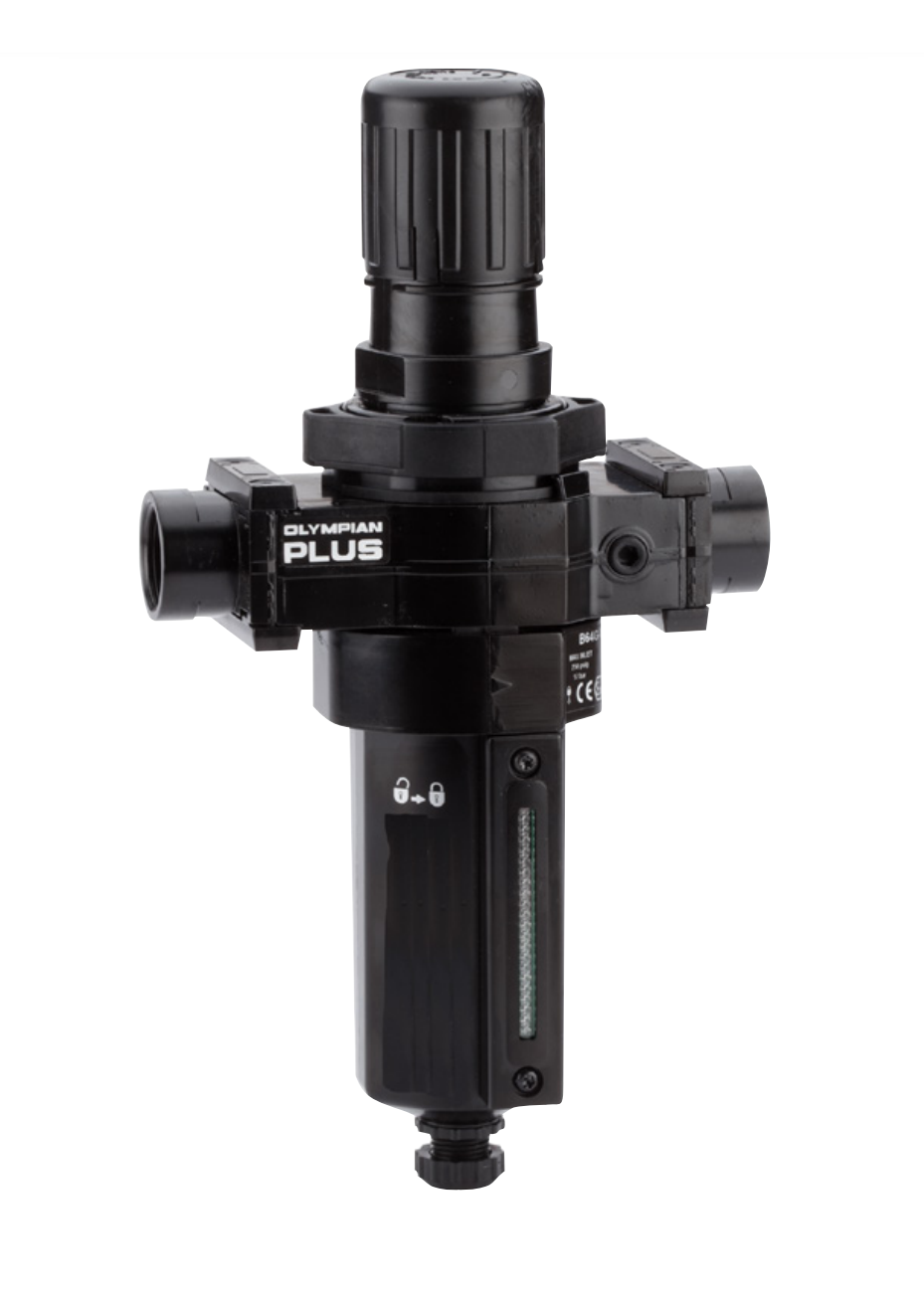

B64G Filter regulator
40 µm filtration
automatic-manual drain
0.3 ÷ 10 bar
G1/4 - G3/8 - G 1/2 - G 3/4

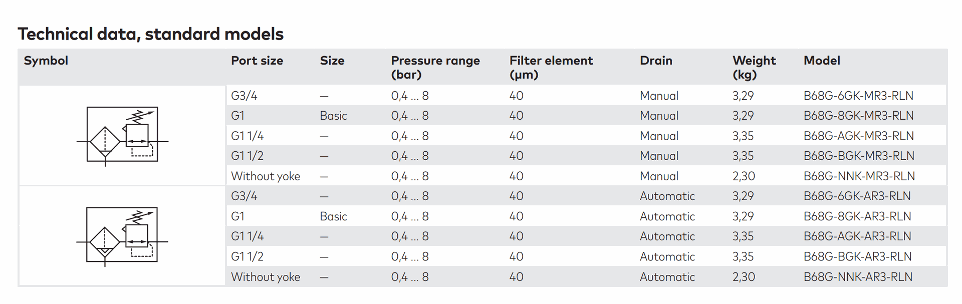

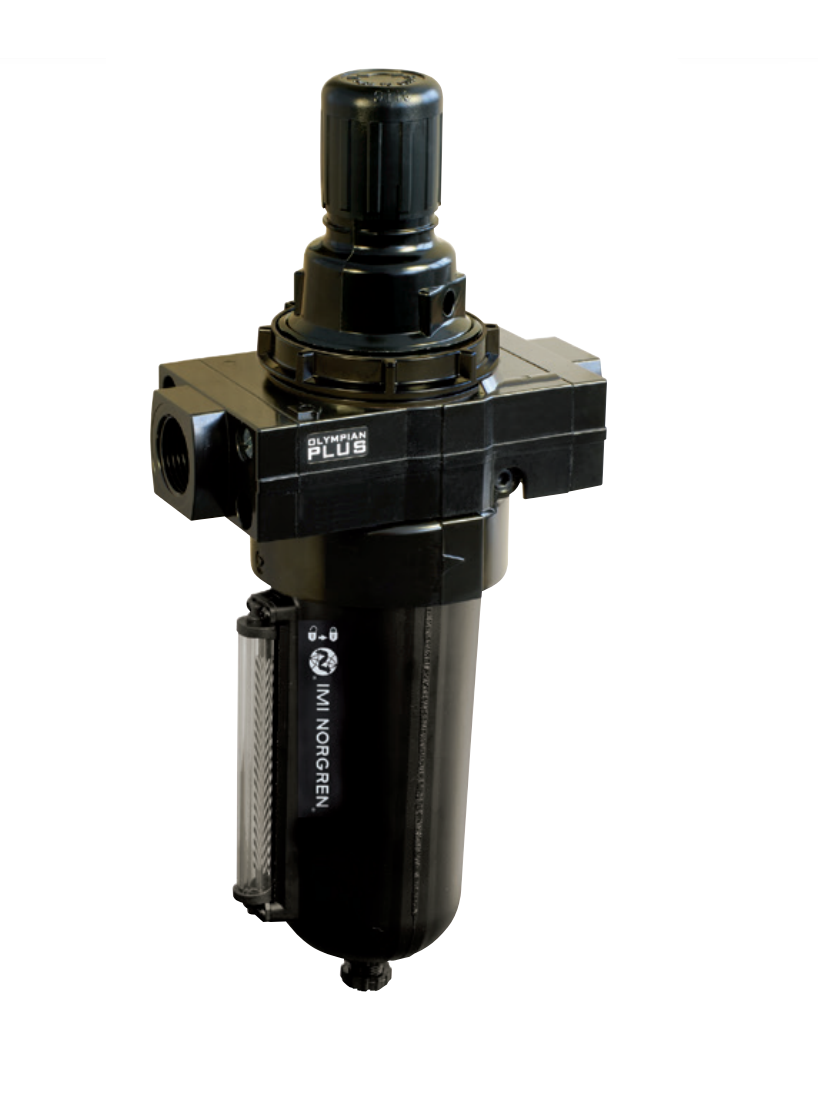

B68G Filter regulator
40 µm filtration
automatic-manual drain
0.4 ÷ 8 bar
G3/4 - G1 - G 1 1/4 - G 1 1/2
