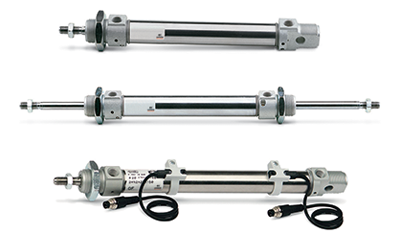

camozzi serie 16 23 24 25

Series 16:
 ø 8, 10, 12 - non-magnetic
Series 23:
ø 16, 20, 25- magnetic, auto-cushioned
Series 24:
ø 16, 20, 25, 32 - magnetic
Series 25:
 ø16, 20, 25, 32 magnetic, cushioned

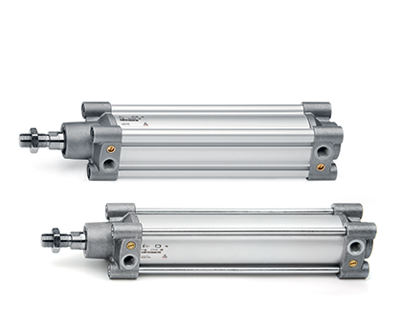

camozzi serie 63

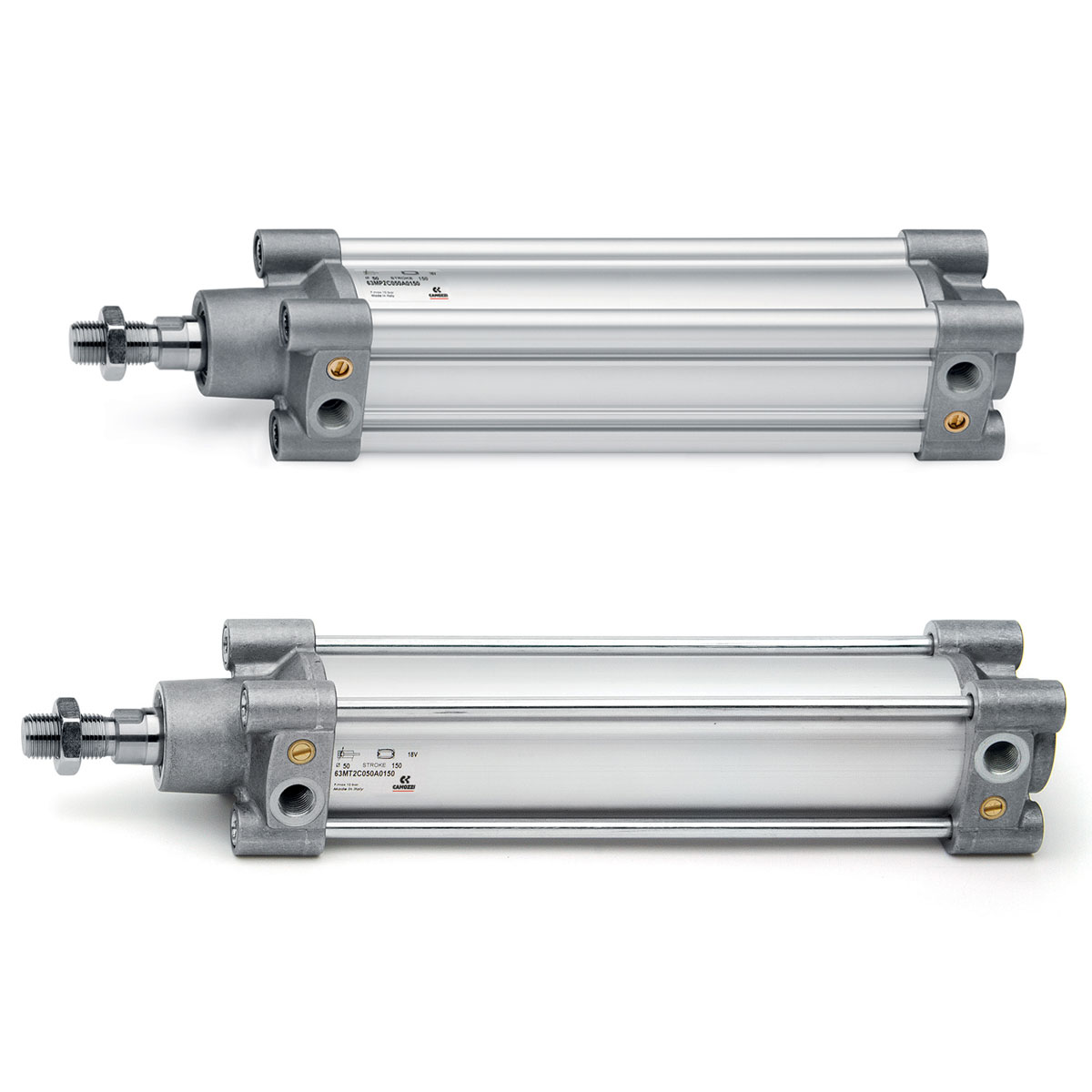

Series 63
ISO 15552 cylinders
Single and double-acting, magnetic, cushioned
ø 32, 40, 50, 63, 80, 100, 125 mm

camozzi serie 61

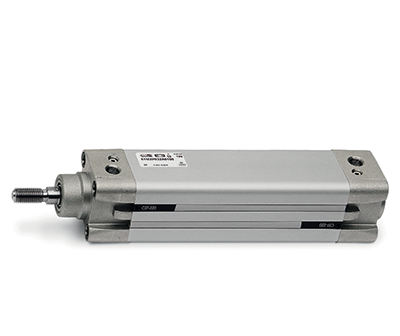

Series 61:
 Single and double-acting, magnetic, cushioned
ø 32, 40, 50, 63, 80, 100, 125 mm

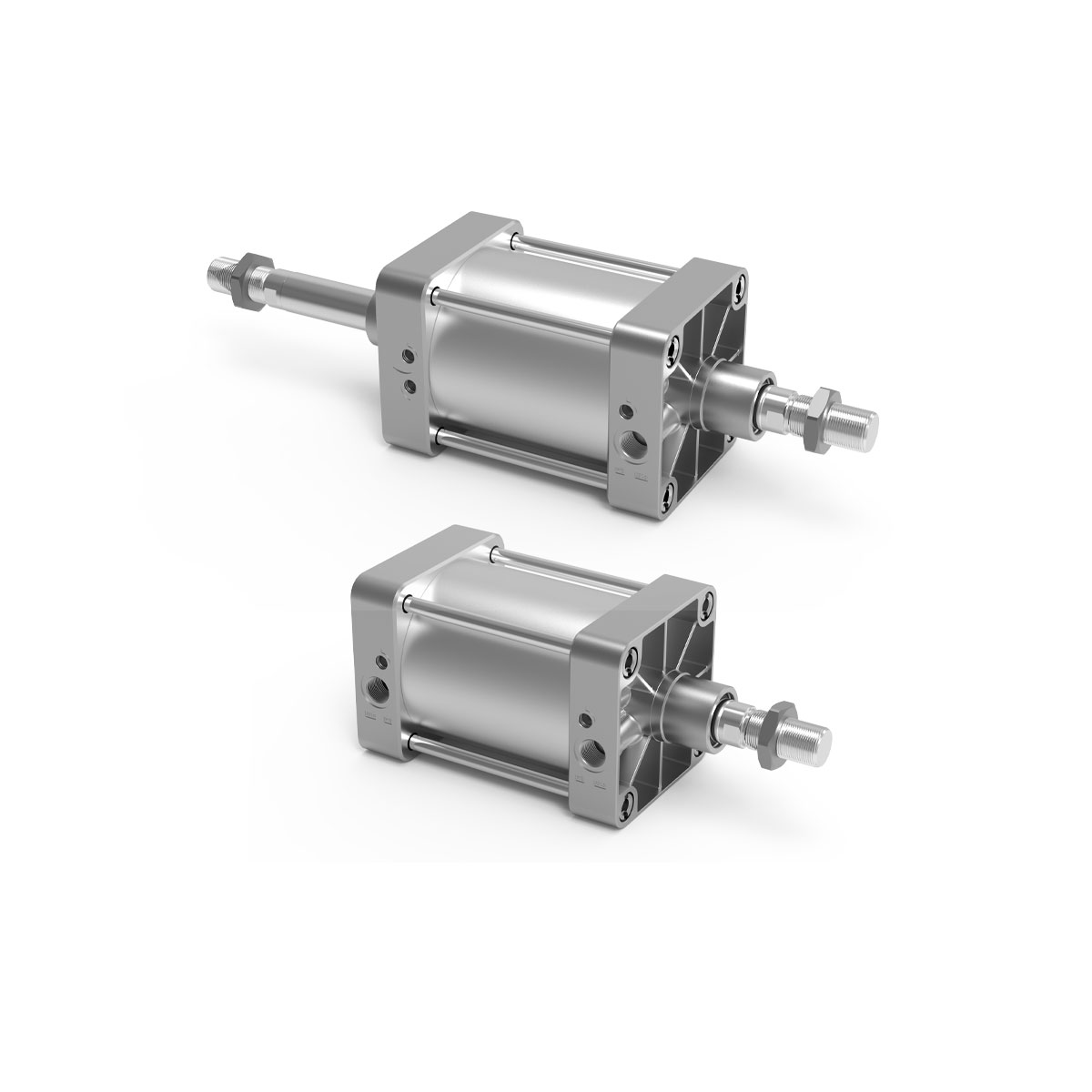

camozzi serie 40

Series 40:
  Double acting, cushioned, magnetic
Ø 160 - 200 - 250 - 320 mm

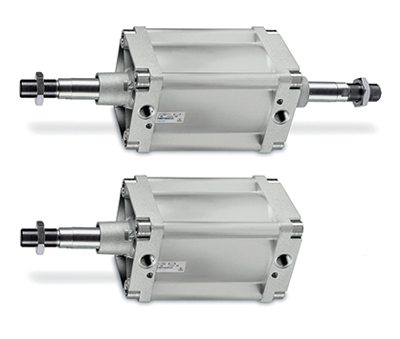

camozzi serie 41

Series 41:
Double-acting, cushioned, magnetic
ø 160 - 200 mm

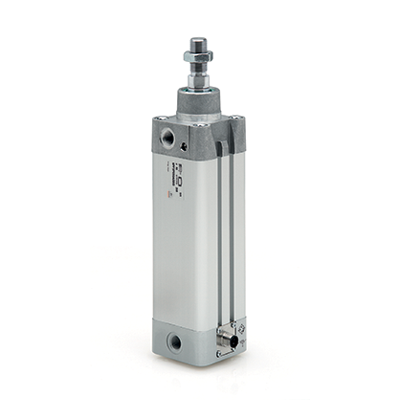

camozzi serie 6PF

Series 6PF :
Positioning Feedback cylinders
ø 50, 63, 80, 100, 125 mm

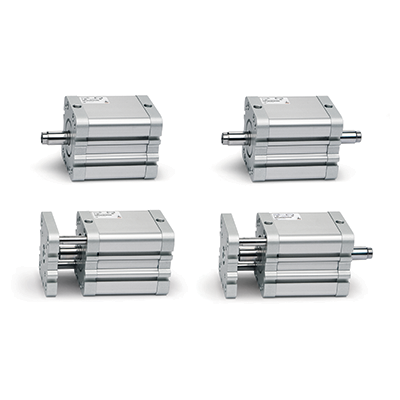

camozzi serie 32

Series 32
compact magnetic cylinders
Single and double-acting, non-rotating
ø 20, 25, 32, 40, 50, 63, 80, 100 mm

camozzi serie 32

Series 32
compact cylinders,
Tandem and Multi-position versions
Double-acting, magnetic
ø 25, 40, 63, 100 mm

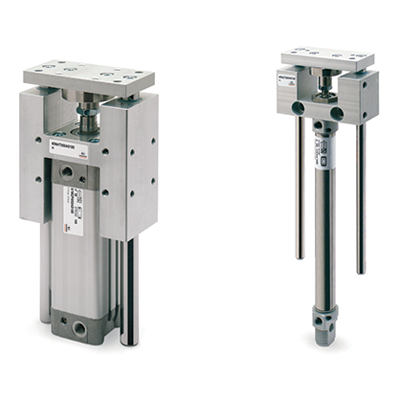

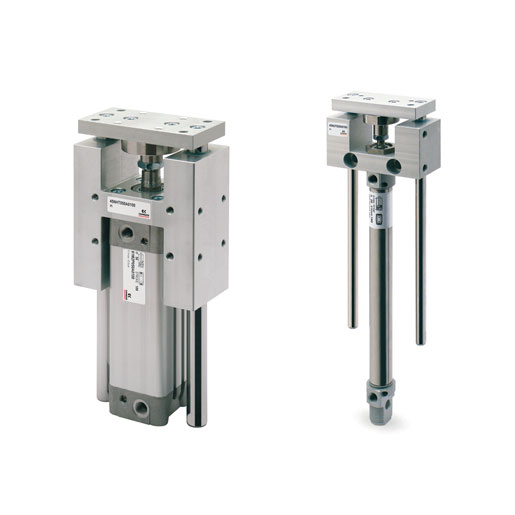

camozzi serie 45

Series 45
anti-rotation guide units
Suitable for cylinders:
- DIN/ISO 6432 (ø12, 16, 20, 25 mm)
- ISO 15552, previous DIN/ISO 6431 (ø32, 40, 50, 63, 80, 100 mm)



air belows

Air Bellows

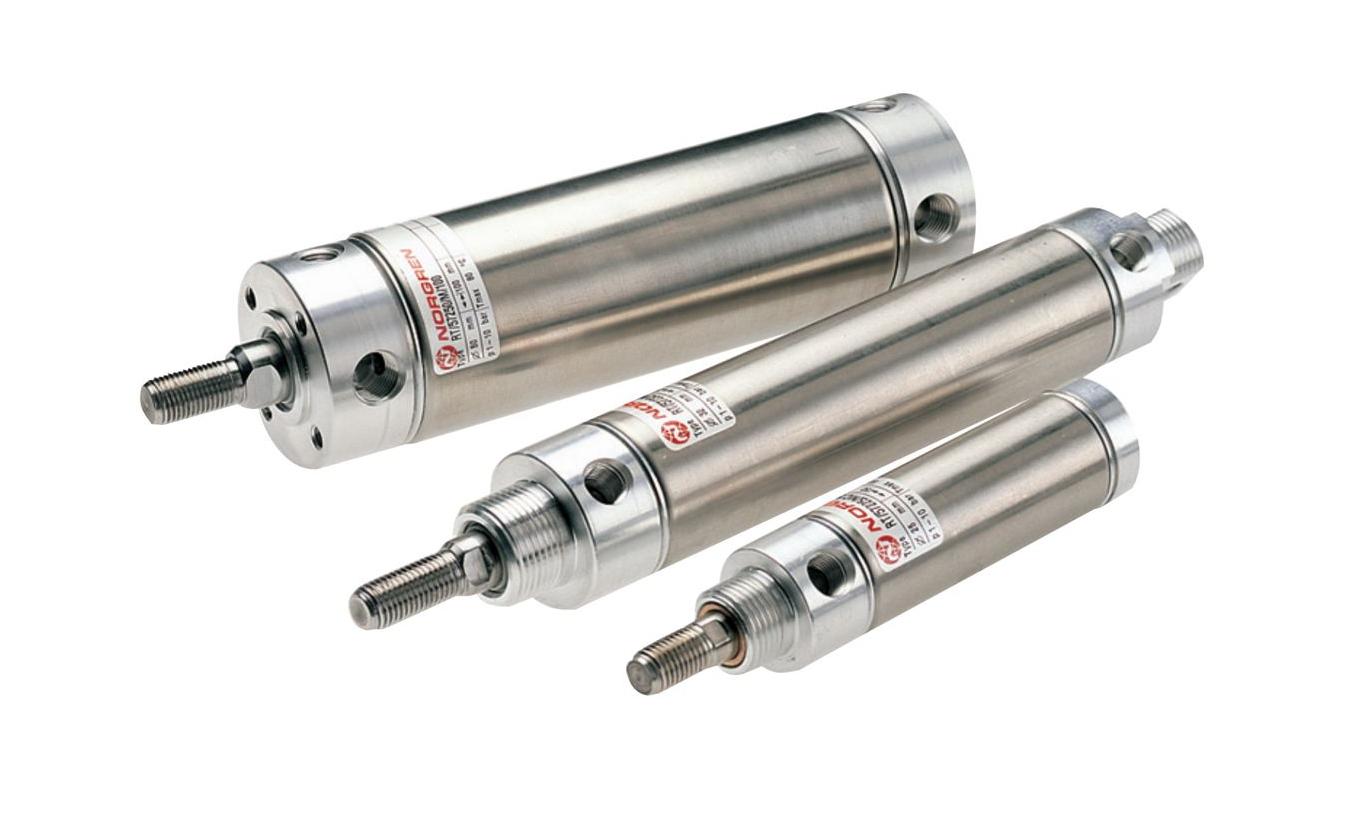

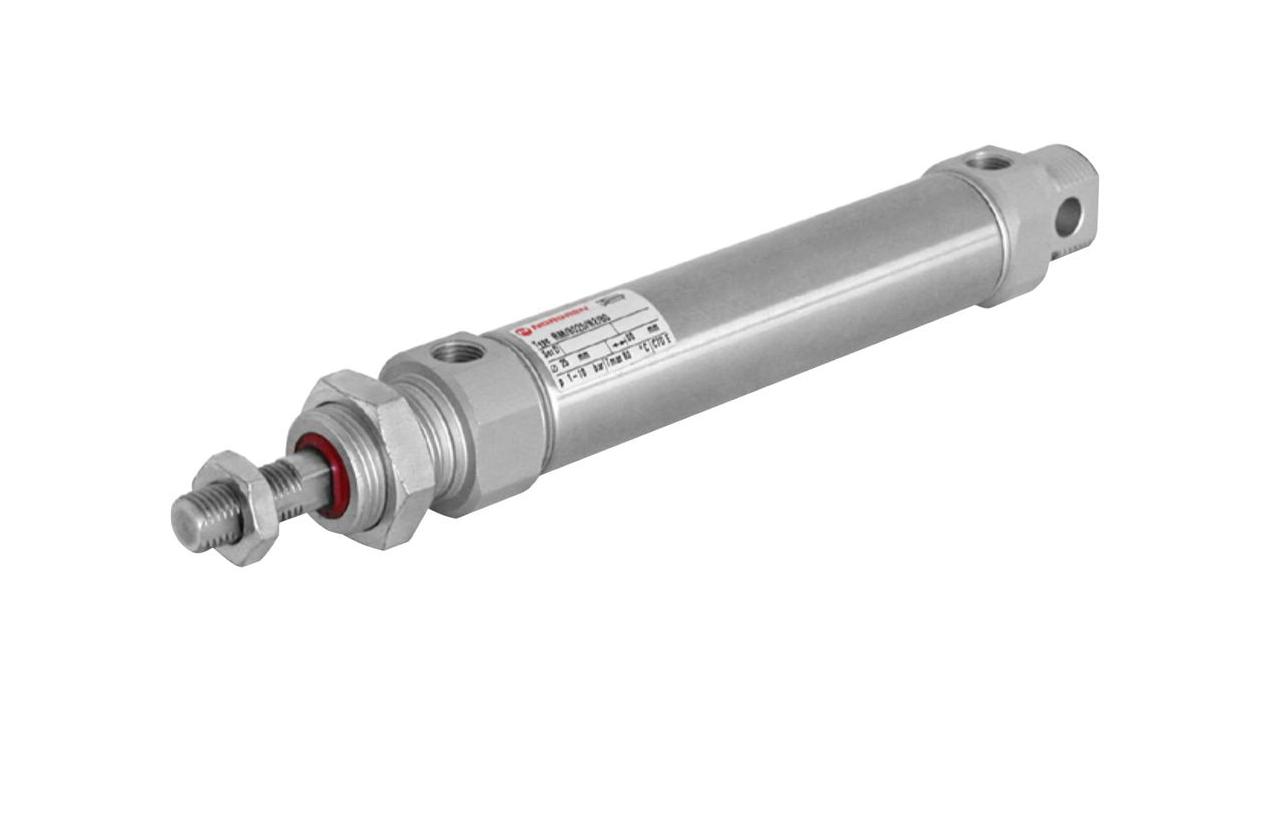

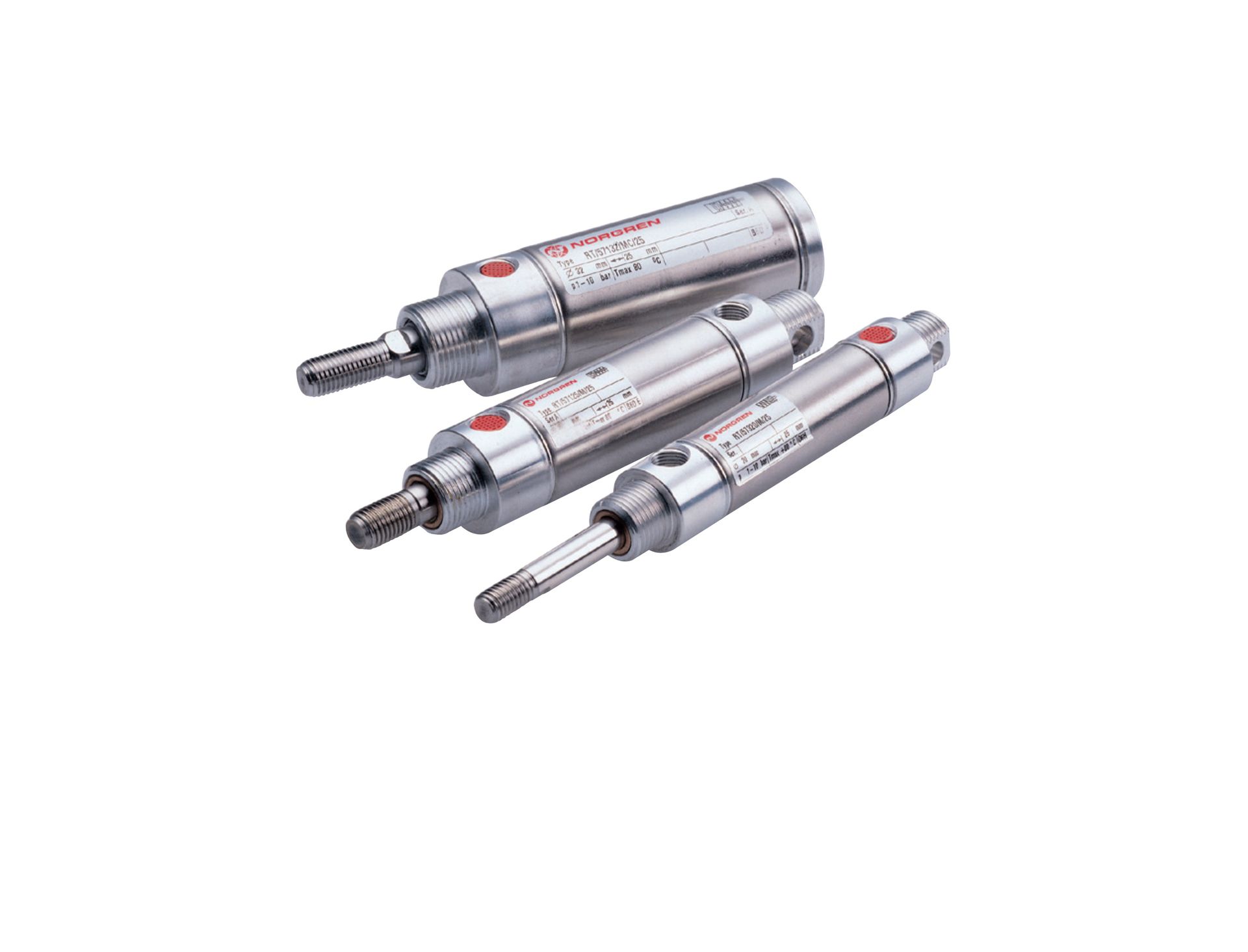

Norgren series RT/57200/M

Series RT/57200/M
Roundline cylinders ISO VDMA
ø 8...63 mm

Norgren series RM/8000/M

Series RM/8000/M
Roundline cylinders ISO VDMA
ø 10...25 mm

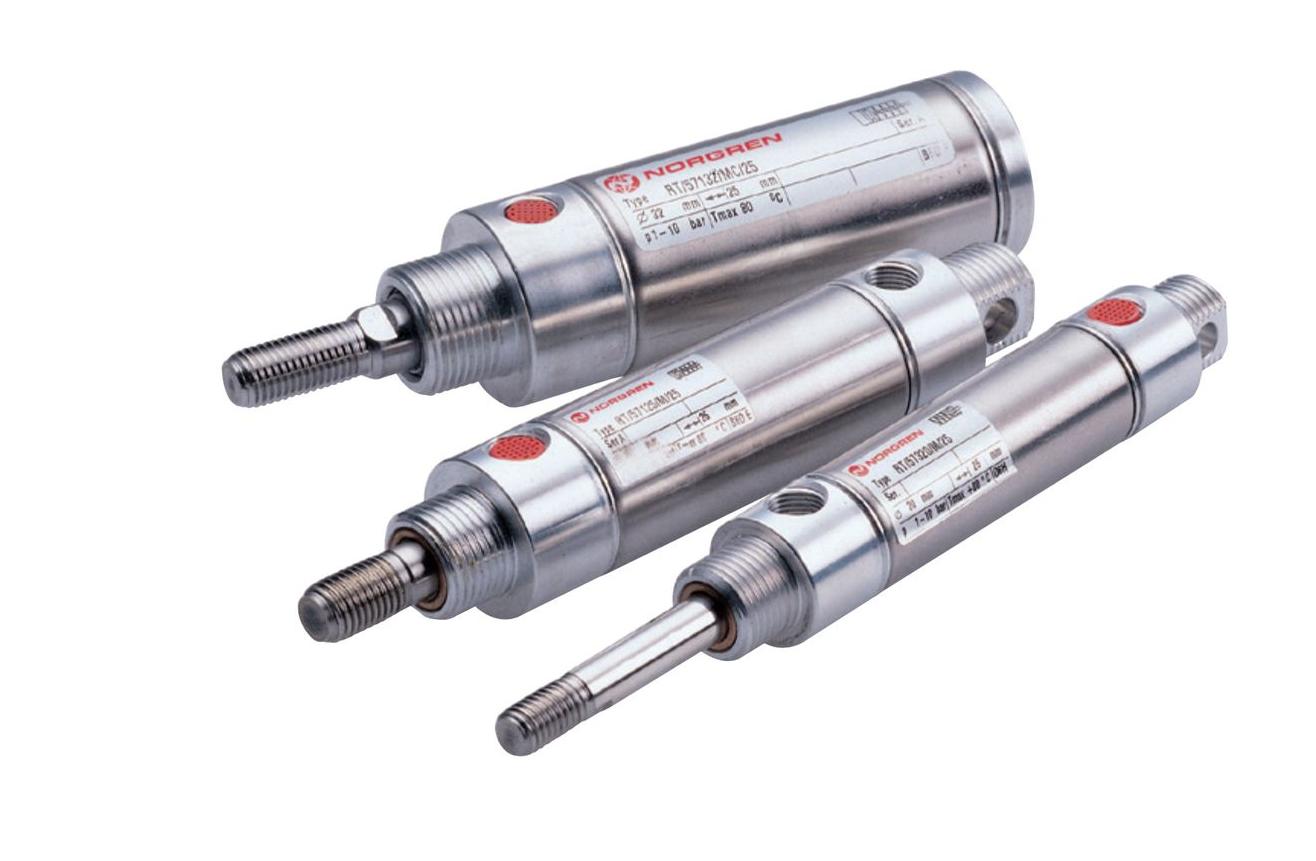

Norgren series RT/57312/M

Series RT/57312/M
Roundline cylinders ISO VDMA
ø 10...25 mm

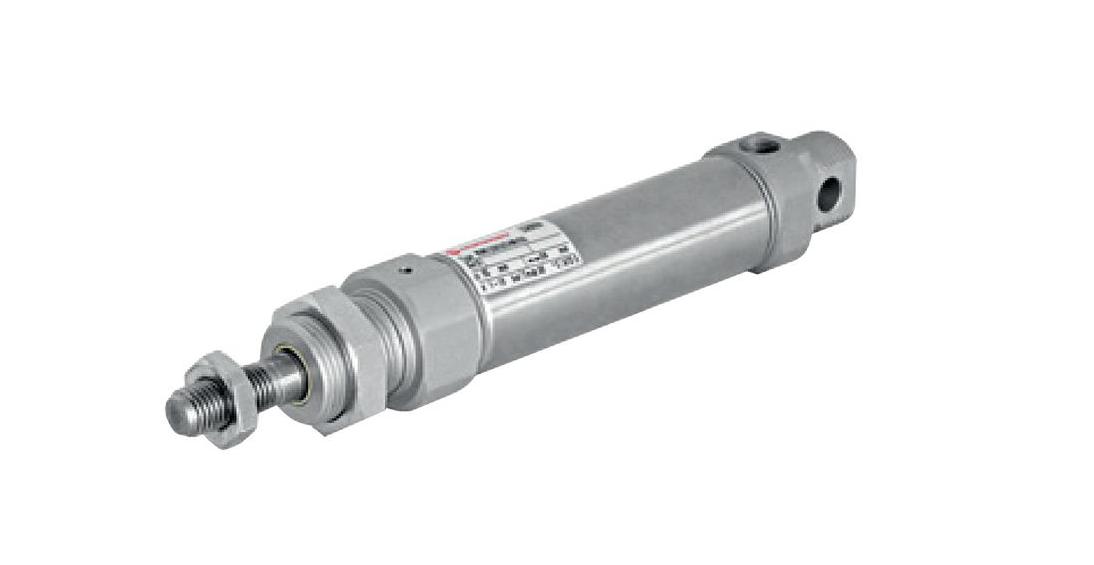

Norgren series RM/28000/M


Series RM/28000/M

Roundline cylinders ISO VDMA
ø 10...25 mm


Norgren series RM/55401/M


Series  RM/55401/M

Roundline cylinders
ø 32...100 mm

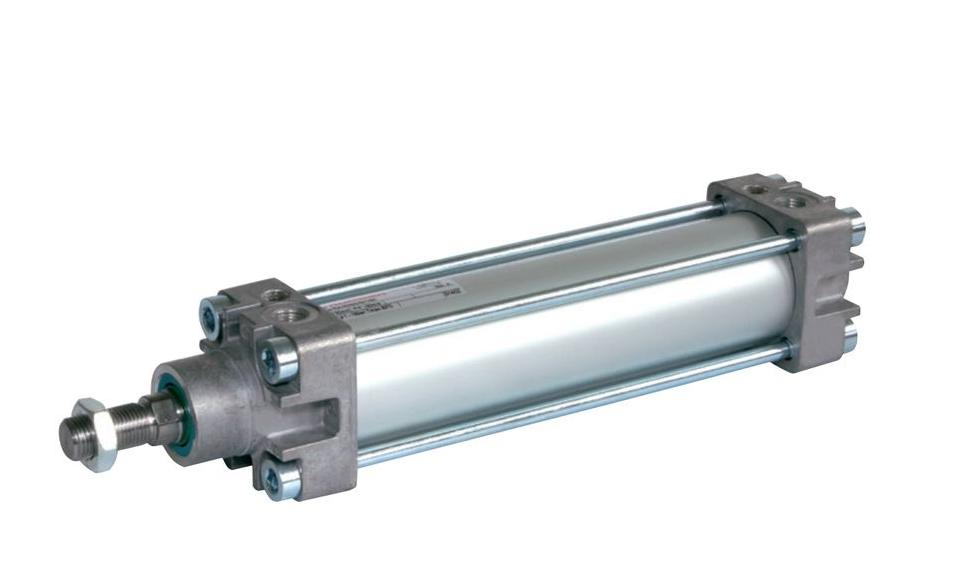

Norgren series RA/8000/M

Series RA/8000/M
cylinders ISO VDMA
ø 32...320 mm

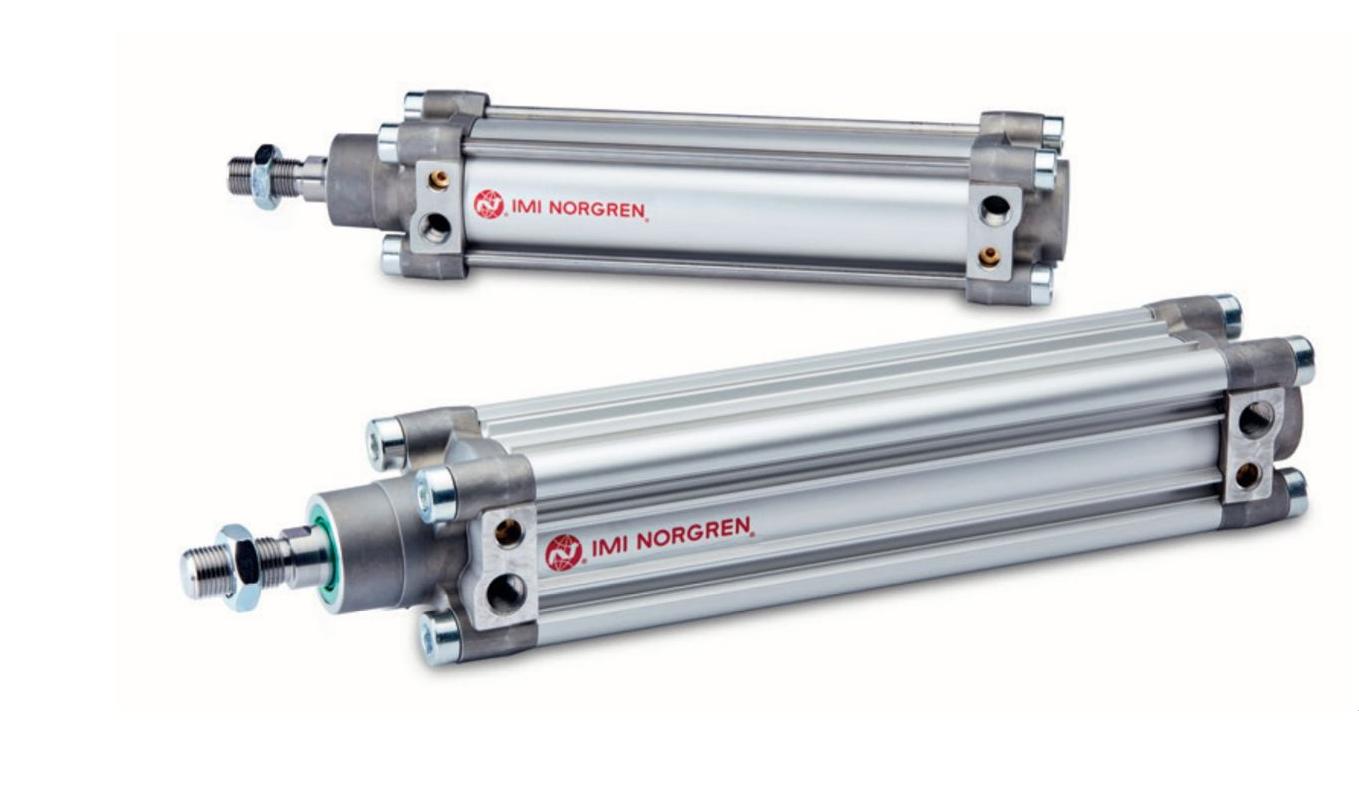

Norgren series RM/80200/M

Series RM/80200/M
 cylinders ISO VDMA
ø 32...320 mm
