Valves island

An pneumatic valve manifold is used to group multiple pneumatic valves in a pneumatic system. It offers the following advantages:

  • Centralizes control of the valves.

  • Reduces the number of required pipelines.

  • Helps save space in an installation.

  • Facilitates valve maintenance.

  • Enables synchronized control of the valves.



  logo camozzi                   logo norgren



 ← Back

Full CAMOZZI Valves Island

 Full Norgren Valves Island

Series Y

valve islands,
Individual, Multipole
Valve island with integrated Pneumatics and Electronics. Available versions: Individual, Multipole.
Valve functions:
2x2/2; 2x3/2; 5/2; 5/3 CC

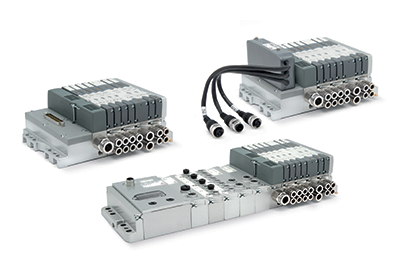

Series HN

Series HN
valve islands, Fieldbus,
Multipole connection with 25 or 37 pins
Valve functions: 2x2/2; 2x3/2; 5/2; 5/3 CC

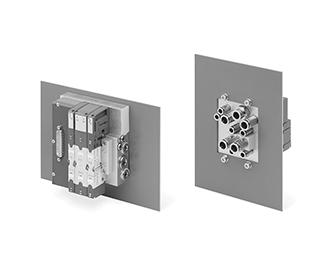

Series HC

valve island
Cabinet version
Multipole connection with 25 or 37 pins
Valve functions:
2x2/2, 2x3/2, 5/2, 5/3 CC

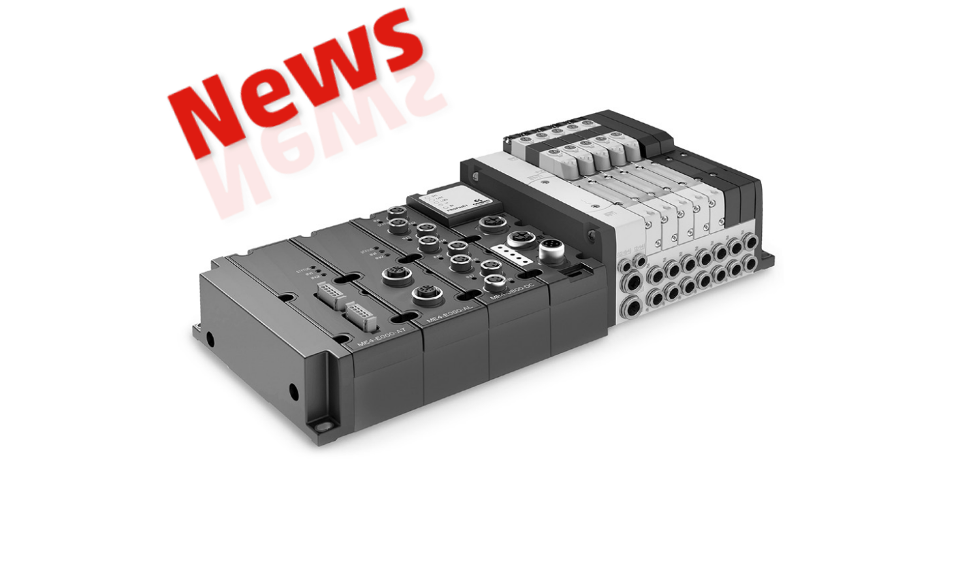

Serie D

valve islands
Multipole connection with 25 or 44 pins
 Valve functions:
2x3/2; 5/2; 5/3 CC, CO, CP

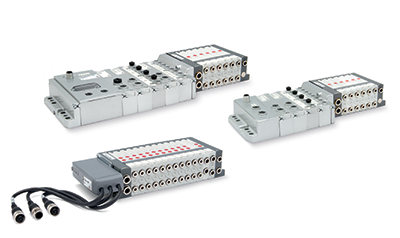

Series F

valve islands
Multipole and Fieldbus
Multipole integrated electrical connection (PNP)
Valve functions:
2x2/2; 2x3/2; 5/2; 5/3 CC

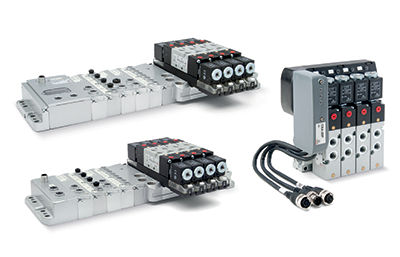

Series 3

Plug-In valve islands,
Multipole and Fieldbus
Plug-In system
for Series 3 solenoid valves G1/8 port
Valve functions:
2x3/2, 5/2, 5/3-way CO CC CP
Multipole with a 25-pin Sub-D connector.
