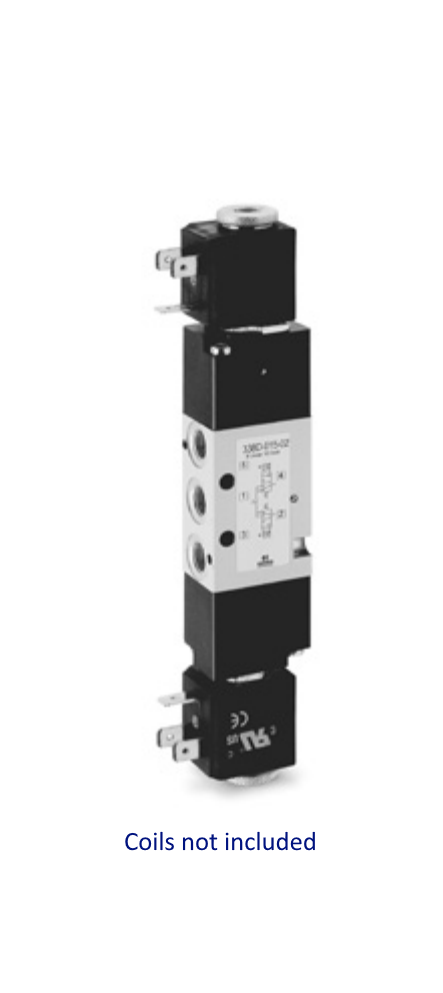

CAM 374-011-02
Serie 3 Valves 5/3 bistable center open G1/4"
1300 Nl/min Elek./ pneu. whithout coil (U7. en G7.)
Votre snippet dynamique sera affiché ici...
Ce message s'affiche parce que vous n'avez pas défini le filtre et le modÚle à utiliser.
Specifications
| Brand | Camozzi, Camozzi |
| Connection size Thread | G1/4" |
| Body materials | Aluminium |
| laying plan | En ligne |
| Tension / Pilote | sans bobine |
| Fonction | Bistable 5/3 centre ouvert |
| Maximum Flow (LPM) | 1200 Nl/min |
| Logic | Normalement Ouvert |
| âP minimum | indirect 2.5...10bar |
| Max working pressure | 10 Bar |
| Coil to be ordered separately | Camozzi => U7H 12Vdc / U7J 230Vac / U77 24Vdc/ U73 24Vdc |
